新幹線

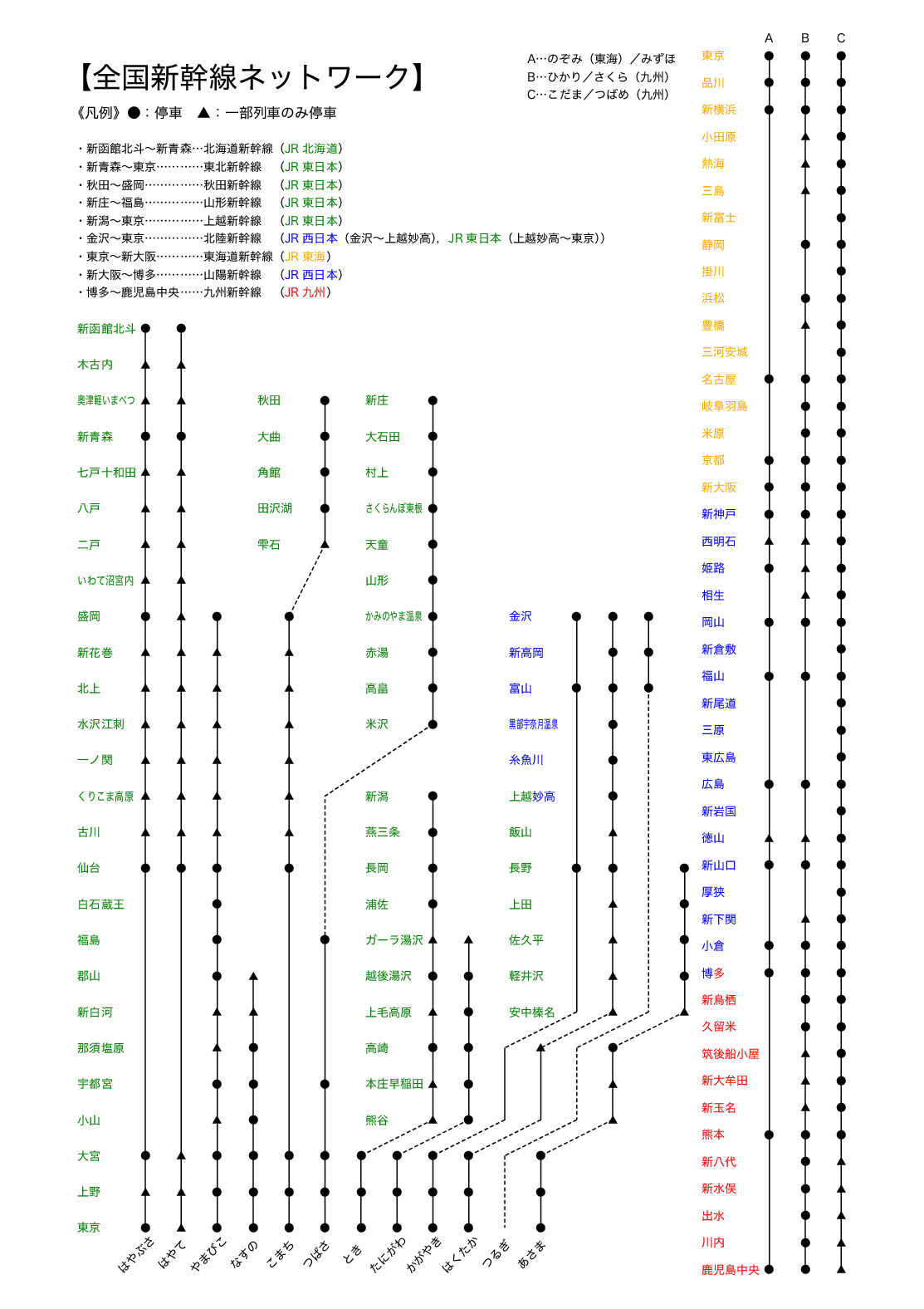

レンダリング結果
TeXソース
TeXソース
入力コード
\documentclass[b4j,10pt,noaux,nocompress]{tetsujsarticle}
\usepackage{tetsuryoku}
%\pagestyle{fancy}% empty にするとヘッダ・フッタ類が全部消える
\pagestyle{empty}% empty にするとヘッダ・フッタ類が全部消える
\余白設定[% デフォルトでは一行字数を四捨五入により整数zwに調整する。\余白設定* だと一行字数を切り上げで整数zwに調整，\余白設定** だと調整しない。
%上余白=1.2truecm,
上余白=0truecm,
下余白=上余白,
%左余白=1.414truecm,
左余白=0.707truecm,
左右差=0truecm,
%段間隔=4zw,% B4横を2段組にしてB5縦を2枚並べたように見せるときには 段間隔=対称 とする。
段間隔=3zw,% B4横を2段組にしてB5縦を2枚並べたように見せるときには 段間隔=対称 とする。
段組の仕切り線の太さ=.5truept,
ヘッダの縦幅=16truept,
%ヘッダの縦幅=10truept,
ヘッダ下端と本文上端の縦間隔=10truept,
ヘッダと本文を仕切る線の太さ=0truept,
本文下端とフッタ下端の縦間隔=20truept,
本文とフッタを仕切る線の太さ=0truept,
傍注領域の幅=0zw,
本文端と傍注領域との間隔=0truept,
傍注同士の縦間隔=\baselineskip,
奇数ページの傍注位置=右,
偶数ページの傍注位置=左,
]
%\段間隔調整{n}% n段組にしたときに一行字数が整数になるよう適切な段間隔に調整する。デフォルトでは現在の一行字数に最も近い字数に調整するが，\段間隔調整* だと一行字数を切り上げで整数zwに調整する。\段間隔調整** だと調整しない。
\fancyhead[OR]{\footnotesize\gtfamily 奇数ページヘッダ右上}
\fancyhead[EL]{\footnotesize\gtfamily 偶数ページヘッダ左上}
\fancyfoot[C]{−\arabic{page}−} % 中央フッタにページ番号
\begin{document}
\gtfamily
%ラベル位置=0,ラベル距離
\newcommand{\会社色}[2]{\ifthenelse{\equal{#1}{1}}{\textcolor{green}{#2}}{\ifthenelse{\equal{#1}{2}}{\textcolor{green}{#2}}{\ifthenelse{\equal{#1}{3}}{\textcolor{orange}{#2}}{\ifthenelse{\equal{#1}{4}}{\textcolor{blue}{#2}}{\ifthenelse{\equal{#1}{5}}{\textcolor{blue}{#2}}{\ifthenelse{\equal{#1}{6}}{\textcolor{red}{#2}}{\textcolor{black}{#2}}}}}}}}
%1北海道 2東日本 3東海 4西日本 5四国 6九州
\makeatletter
%\newcommand{\駅}{\@ifstar{\@駅星あり}{\@駅星なし}}
%\newcommand{\@駅星あり}[5][right]{\coordinate ({#3}) at #2 node at ({#3})[#1]{\会社色{#4}{\gt{\scalebox{#5}[1]{#3}}}}} % * のある場合の命令の定義
%\newcommand{\@駅星なし}[4][right]{\coordinate ({#3}) at #2 node at ({#3})[#1]{\会社色{#4}{#3}}}% * のない場合の命令の定義
\newcommand{\駅}[4][right]{\coordinate ({#3}) at #2 node at ({#3})[#1]{\会社色{#4}{#3}}}
\newcommand{\単発駅}[4][right]{\coordinate ({#3}) at #2 node at ({#3})[#1]{#4}}%汎用性up
%\newcommand{\停車}[3]{\coordinate ({#1-#2}) at ($(#1)+(#2+1,0)$) node at ({#1-#2}){\ifthenelse{\equal{#3}{@}}{\colorbox{white}{\scalebox{0.6}{\HiraKakuWNine{}{◯}}}}{\ifthenelse{\equal{#3}{}}{\colorbox{white}{\scalebox{0.6}{\HiraKakuWNine{}{◎}}}}{}}}}
\newcommand{\停車}[3]{\coordinate ({#1-#2}) at ($(#1)+(#2+1,0)$) node at ({#1-#2}){\ifthenelse{\equal{#3}{@}}{\scalebox{0.9}{\HiraKakuWNine{▲}}}{\ifthenelse{\equal{#3}{}}{\scalebox{0.9}{\HiraKakuWNine{●}}}{}}}}
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
\begin{center}
\begin{tikzpicture}
%====================================================================================
%以下路線図以外のレイアウト==========================================================
%====================================================================================
\node at (0,37)[right]{\Huge 【全国新幹線ネットワーク】};
%\draw (0.24,32.5) rectangle (6,35.5);
\node at (0,36)[right]{\large 《凡例》\HiraKakuWNine{●}：停車\ihspace{1zw}\HiraKakuWNine{▲}：一部列車のみ停車};
\node at (0,35)[right]{・新函館北斗〜新青森…北海道新幹線（\会社色{1}{JR北海道}）};
\node at (0,34.5)[right]{・新青森〜東京…………東北新幹線\ihspace{1.5zw}（\会社色{2}{JR東日本}）};
\node at (0,34)[right]{・秋田〜盛岡……………秋田新幹線\ihspace{1.5zw}（\会社色{2}{JR東日本}）};
\node at (0,33.5)[right]{・新庄〜福島……………山形新幹線\ihspace{1.5zw}（\会社色{2}{JR東日本}）};
\node at (0,33)[right]{・新潟〜東京……………上越新幹線\ihspace{1.5zw}（\会社色{2}{JR東日本}）};
\node at (0,32.5)[right]{・金沢〜東京……………北陸新幹線\ihspace{1.5zw}（\会社色{4}{JR西日本}（金沢〜上越妙高），\会社色{2}{JR東日本}（上越妙高〜東京））};
\node at (0,32)[right]{・東京〜新大阪…………東海道新幹線（\会社色{3}{JR東海}）};%（東京〜新大阪），\会社色{4}{JR西日本}（京都〜新大阪）
%注意：東海道新幹線（東京〜新大阪）は全てJR東海の管轄。対し，東海道本線は東京〜熱海がJR東日本，熱海〜米原がJR東海，米原〜神戸がJR西日本でそれより西は山陽本線，東（北）は東北本線
\node at (0,31.5)[right]{・新大阪〜博多…………山陽新幹線\ihspace{1.5zw}（\会社色{4}{JR西日本}）};
\node at (0,31)[right]{・博多〜鹿児島中央……九州新幹線\ihspace{1.5zw}（\会社色{6}{JR九州}）};
%====================================================================================
%以上路線図以外のレイアウト，以下線路================================================
%====================================================================================
\draw[thick](2,30)--(2,5);%はやぶさ
\draw[thick](3,30)--(3,5);%はやて
\draw[thick](4,22)--(4,5);%やまびこ
\draw[thick](5,12)--(5,5);%なすの
\draw[thick](7,28)--(7,24);%こまち３
\draw[thick][densely dashed](7,24)--(6,22);%こまち２
\draw[thick](6,22)--(6,5);%こまち１
\draw[thick](10,28)--(10,19);%つばさ３
\draw[thick][densely dashed](10,19)--(7,17)--(7,13);%つばさ１
\draw[thick](7,13)--(7,5);%つばさ１
\draw[thick](8,7)--(8,5);%とき１
\draw[thick][densely dashed](10,8)--(8,7);%とき２
\draw[thick](10,17)--(10,8);%とき３
\draw[thick](9,7)--(9,5);%たにがわ１
\draw[thick][densely dashed](11,8)--(9,7);%たにがわ２
\draw[thick](11,13)--(11,8);%たにがわ３
\draw[thick](10,7)--(10,5);%かがやき１
\draw[thick][densely dashed](12,8)--(10,7);%かがやき２
\draw[thick](12,10)--(12,8);%かがやき３
\draw[thick][densely dashed](14,11)--(12,10);%かがやき４
\draw[thick](14,22)--(14,11);%かがやき５
\draw[thick](11,7)--(11,5);%はくたか１
\draw[thick][densely dashed](13,8)--(11,7);%はくたか２
\draw[thick](13,10)--(13,8);%はくたか３
\draw[thick][densely dashed](15,11)--(13,10);%はくたか４
\draw[thick](15,22)--(15,11);%はくたか５
\draw[thick][densely dashed](12,7)--(12,5);%つるぎ１
\draw[thick][densely dashed](14,8)--(12,7);%つるぎ２
\draw[thick][densely dashed](14,10)--(14,8);%つるぎ３
\draw[thick][densely dashed](16,11)--(14,10);%つるぎ４
\draw[thick][densely dashed](16,20)--(16,11);%つるぎ５
\draw[thick](16,22)--(16,20);%つるぎ６
\draw[thick](13,7)--(13,5);%あさま１
\draw[thick][densely dashed](15,8)--(13,7);%あさま２
\draw[thick](15,10)--(15,8);%あさま３
\draw[thick][densely dashed](17,11)--(15,10);%あさま４
\draw[thick](17,15)--(17,11);%あさま５
\node at (1.75,4.25){\rotatebox{45}{はやぶさ}};
\node at (2.75,4.25){\rotatebox{45}{はやて}};
\node at (3.75,4.25){\rotatebox{45}{やまびこ}};
\node at (4.75,4.25){\rotatebox{45}{なすの}};
\node at (5.75,4.25){\rotatebox{45}{こまち}};
\node at (6.75,4.25){\rotatebox{45}{つばさ}};
\node at (7.75,4.25){\rotatebox{45}{とき}};
\node at (8.75,4.25){\rotatebox{45}{たにがわ}};
\node at (9.75,4.25){\rotatebox{45}{かがやき}};
\node at (10.75,4.25){\rotatebox{45}{はくたか}};
\node at (11.75,4.25){\rotatebox{45}{つるぎ}};
\node at (12.75,4.25){\rotatebox{45}{あさま}};
%====================================================================================
%以上線路，以下駅名と停車判定========================================================
%====================================================================================
\駅{(0,30)}{新函館北斗}{1};
\停車{新函館北斗}{1}{};
\停車{新函館北斗}{2}{};
\駅{(0,29)}{木古内}{1};
\停車{木古内}{1}{@};
\停車{木古内}{2}{@};
\単発駅{(0,28)}{奥津軽いまべつ}{\scalebox{0.7}[1]{\会社色{1}{奥津軽いまべつ}}};
\停車{奥津軽いまべつ}{1}{@};
\停車{奥津軽いまべつ}{2}{@};
\駅{(0,27)}{新青森}{2};
\停車{新青森}{1}{};
\停車{新青森}{2}{};
\駅{(0,26)}{七戸十和田}{2};
\停車{七戸十和田}{1}{@};
\停車{七戸十和田}{2}{@};
\駅{(0,25)}{八戸}{2};
\停車{八戸}{1}{@};
\停車{八戸}{2}{@};
\駅{(0,24)}{二戸}{2};
\停車{二戸}{1}{@};
\停車{二戸}{2}{@};
\単発駅{(0,23)}{いわて沼宮内}{\scalebox{0.8}[1]{\会社色{2}{いわて沼宮内}}};
\停車{いわて沼宮内}{1}{@};
\停車{いわて沼宮内}{2}{@};
\駅{(5,28)}{秋田}{2};
\停車{秋田}{1}{};
\駅{(5,27)}{大曲}{2};
\停車{大曲}{1}{};
\駅{(5,26)}{角館}{2};
\停車{角館}{1}{};
\駅{(5,25)}{田沢湖}{2};
\停車{田沢湖}{1}{};
\駅{(5,24)}{雫石}{2};
\停車{雫石}{1}{@};
\駅{(0,22)}{盛岡}{2};
\停車{盛岡}{1}{};
\停車{盛岡}{2}{@};
\停車{盛岡}{3}{};
\停車{盛岡}{5}{};
\駅{(0,21)}{新花巻}{2};
\停車{新花巻}{1}{@};
\停車{新花巻}{2}{@};
\停車{新花巻}{3}{@};
\停車{新花巻}{5}{@};
\駅{(0,20)}{北上}{2};
\停車{北上}{1}{@};
\停車{北上}{2}{@};
\停車{北上}{3}{@};
\停車{北上}{5}{@};
\駅{(0,19)}{水沢江刺}{2};
\停車{水沢江刺}{1}{@};
\停車{水沢江刺}{2}{@};
\停車{水沢江刺}{3}{@};
\停車{水沢江刺}{5}{@};
\駅{(0,18)}{一ノ関}{2};
\停車{一ノ関}{1}{@};
\停車{一ノ関}{2}{@};
\停車{一ノ関}{3}{@};
\停車{一ノ関}{5}{@};
\単発駅{(0,17)}{くりこま高原}{\scalebox{0.8}[1]{\会社色{2}{くりこま高原}}};
\停車{くりこま高原}{1}{@};
\停車{くりこま高原}{2}{@};
\停車{くりこま高原}{3}{@};
\停車{くりこま高原}{5}{@};
\駅{(0,16)}{古川}{2};
\停車{古川}{1}{@};
\停車{古川}{2}{@};
\停車{古川}{3}{@};
\停車{古川}{5}{@};
\駅{(0,15)}{仙台}{2};
\停車{仙台}{1}{};
\停車{仙台}{2}{};
\停車{仙台}{3}{};
\停車{仙台}{5}{};
\駅{(0,14)}{白石蔵王}{2};
\停車{白石蔵王}{1}{-};
\停車{白石蔵王}{2}{-};
\停車{白石蔵王}{3}{};
\停車{白石蔵王}{5}{-};
\駅{(8,28)}{新庄}{2};
\停車{新庄}{1}{};
\駅{(8,27)}{大石田}{2};
\停車{大石田}{1}{};
\駅{(8,26)}{村上}{2};
\停車{村上}{1}{};
\単発駅{(8,25)}{さくらんぼ東根}{\scalebox{0.7}[1]{\会社色{2}{さくらんぼ東根}}};
\停車{さくらんぼ東根}{1}{};
\駅{(8,24)}{天童}{2};
\停車{天童}{1}{};
\駅{(8,23)}{山形}{2};
\停車{山形}{1}{};
\単発駅{(8,22)}{かみのやま温泉}{\scalebox{0.7}[1]{\会社色{2}{かみのやま温泉}}};
\停車{かみのやま温泉}{1}{};
\駅{(8,21)}{赤湯}{2};
\停車{赤湯}{1}{};
\駅{(8,20)}{高畠}{2};
\停車{高畠}{1}{};
\駅{(8,19)}{米沢}{2};
\停車{米沢}{1}{};
\駅{(0,13)}{福島}{2};
\停車{福島}{1}{-};
\停車{福島}{2}{-};
\停車{福島}{3}{};
\停車{福島}{5}{-};
\停車{福島}{6}{};
\駅{(0,12)}{郡山}{2};
\停車{郡山}{1}{-};
\停車{郡山}{2}{-};
\停車{郡山}{3}{};
\停車{郡山}{4}{@};
\停車{郡山}{5}{-};
\停車{郡山}{6}{-};
\駅{(0,11)}{新白河}{2};
\停車{新白河}{1}{-};
\停車{新白河}{2}{-};
\停車{新白河}{3}{@};
\停車{新白河}{4}{@};
\停車{新白河}{5}{-};
\停車{新白河}{6}{-};
\駅{(0,10)}{那須塩原}{2};
\停車{那須塩原}{1}{-};
\停車{那須塩原}{2}{-};
\停車{那須塩原}{3}{@};
\停車{那須塩原}{4}{};
\停車{那須塩原}{5}{-};
\停車{那須塩原}{6}{-};
\駅{(0,9)}{宇都宮}{2};
\停車{宇都宮}{1}{-};
\停車{宇都宮}{2}{-};
\停車{宇都宮}{3}{};
\停車{宇都宮}{4}{};
\停車{宇都宮}{5}{-};
\停車{宇都宮}{6}{};
\駅{(0,8)}{小山}{2};
\停車{小山}{1}{-};
\停車{小山}{2}{-};
\停車{小山}{3}{@};
\停車{小山}{4}{};
\停車{小山}{5}{-};
\停車{小山}{6}{-};
\駅{(8,17)}{新潟}{2};
\停車{新潟}{1}{};
\駅{(8,16)}{燕三条}{2};
\停車{燕三条}{1}{};
\駅{(8,15)}{長岡}{2};
\停車{長岡}{1}{};
\駅{(8,14)}{浦佐}{2};
\停車{浦佐}{1}{};
\駅{(8,13)}{ガーラ湯沢}{2};
\停車{ガーラ湯沢}{1}{@};
\停車{ガーラ湯沢}{2}{@};
\駅{(8,12)}{越後湯沢}{2};
\停車{越後湯沢}{1}{};
\停車{越後湯沢}{2}{};
\駅{(8,11)}{上毛高原}{2};
\停車{上毛高原}{1}{@};
\停車{上毛高原}{2}{};
\駅{(12,22)}{金沢}{4};
\停車{金沢}{1}{};
\停車{金沢}{2}{};
\停車{金沢}{3}{};
\駅{(12,21)}{新高岡}{4};
\停車{新高岡}{1}{-};
\停車{新高岡}{2}{};
\停車{新高岡}{3}{};
\駅{(12,20)}{富山}{4};
\停車{富山}{1}{};
\停車{富山}{2}{};
\停車{富山}{3}{};
\単発駅{(12,19)}{黒部宇奈月温泉}{\scalebox{0.6}[1]{\会社色{4}{黒部宇奈月温泉}}};
\停車{黒部宇奈月温泉}{1}{-};
\停車{黒部宇奈月温泉}{2}{};
\停車{黒部宇奈月温泉}{3}{-};
\駅{(12,18)}{糸魚川}{4};
\停車{糸魚川}{1}{-};
\停車{糸魚川}{2}{};
\停車{糸魚川}{3}{-};
\単発駅{(12,17)}{上越妙高}{\会社色{2}{上越}\会社色{4}{妙高}};
\停車{上越妙高}{1}{-};
\停車{上越妙高}{2}{};
\停車{上越妙高}{3}{-};
\駅{(12,16)}{飯山}{2};
\停車{飯山}{1}{-};
\停車{飯山}{2}{@};
\停車{飯山}{3}{-};
\駅{(12,15)}{長野}{2};
\停車{長野}{1}{};
\停車{長野}{2}{};
\停車{長野}{3}{-};
\停車{長野}{4}{};
\駅{(12,14)}{上田}{2};
\停車{上田}{1}{-};
\停車{上田}{2}{@};
\停車{上田}{3}{-};
\停車{上田}{4}{};
\駅{(12,13)}{佐久平}{2};
\停車{佐久平}{1}{-};
\停車{佐久平}{2}{@};
\停車{佐久平}{3}{-};
\停車{佐久平}{4}{};
\駅{(12,12)}{軽井沢}{2};
\停車{軽井沢}{1}{-};
\停車{軽井沢}{2}{@};
\停車{軽井沢}{3}{-};
\停車{軽井沢}{4}{};
\駅{(12,11)}{安中榛名}{2};
\停車{安中榛名}{1}{-};
\停車{安中榛名}{2}{@};
\停車{安中榛名}{3}{-};
\停車{安中榛名}{4}{@};
\駅{(8,10)}{高崎}{2};
\停車{高崎}{1}{};
\停車{高崎}{2}{};
\停車{高崎}{3}{-};
\停車{高崎}{4}{@};
\停車{高崎}{5}{-};
\停車{高崎}{6}{};
\駅{(8,9)}{本庄早稲田}{2};
\停車{本庄早稲田}{1}{@};
\停車{本庄早稲田}{2}{};
\停車{本庄早稲田}{3}{-};
\停車{本庄早稲田}{4}{-};
\停車{本庄早稲田}{5}{-};
\停車{本庄早稲田}{6}{@};
\駅{(8,8)}{熊谷}{2};
\停車{熊谷}{1}{@};
\停車{熊谷}{2}{};
\停車{熊谷}{3}{-};
\停車{熊谷}{4}{-};
\停車{熊谷}{5}{-};
\停車{熊谷}{6}{@};
\駅{(0,7)}{大宮}{2};
\停車{大宮}{1}{};
\停車{大宮}{2}{@};
\停車{大宮}{3}{};
\停車{大宮}{4}{};
\停車{大宮}{5}{};
\停車{大宮}{6}{};
\停車{大宮}{7}{};
\停車{大宮}{8}{};
\停車{大宮}{9}{};
\停車{大宮}{10}{};
\停車{大宮}{11}{-};
\停車{大宮}{12}{};
\駅{(0,6)}{上野}{2};
\停車{上野}{1}{@};
\停車{上野}{2}{@};
\停車{上野}{3}{};
\停車{上野}{4}{};
\停車{上野}{5}{};
\停車{上野}{6}{};
\停車{上野}{7}{};
\停車{上野}{8}{};
\停車{上野}{9}{};
\停車{上野}{10}{};
\停車{上野}{11}{-};
\停車{上野}{12}{};
\駅{(0,5)}{東京}{2};
\停車{東京}{1}{};
\停車{東京}{2}{@};
\停車{東京}{3}{};
\停車{東京}{4}{};
\停車{東京}{5}{};
\停車{東京}{6}{};
\停車{東京}{7}{};
\停車{東京}{8}{};
\停車{東京}{9}{};
\停車{東京}{10}{};
\停車{東京}{11}{-};
\停車{東京}{12}{};
%\駅{(,)}{ほげ}{};
% \停車{ほげ}{}{};
\node at (12.5,37.5)[right]{A…のぞみ（東海）／みずほ};
\node at (12.5,37)[right]{B…ひかり／さくら（九州）};
\node at (12.5,36.5)[right]{C…こだま／つばめ（九州）};
\end{tikzpicture}
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%\hfill
\begin{tikzpicture}
\draw[thick](2,0)--(2,-33.75);%のぞみ
\draw[thick](3,0)--(3,-33.75);%ひかり／さくら
\draw[thick](4,0)--(4,-33.75);%こだま／つばめ
%\node at (-3.25,-3){\rotatebox{45}{のぞみ（東海）／みずほ}};
%\node at (-4.25,-3){\rotatebox{45}{ひかり／さくら（九州）}};
%\node at (-5.25,-3){\rotatebox{45}{こだま／つばめ（九州）}};
\node at (2,0.5){A};
\node at (3,0.5){B};
\node at (4,0.5){C};
\駅{(0,0)}{東京}{3};
\停車{東京}{1}{};
\停車{東京}{2}{};
\停車{東京}{3}{};
\駅{(0,-0.75)}{品川}{3};
\停車{品川}{1}{};
\停車{品川}{2}{};
\停車{品川}{3}{};
\駅{(0,-1.5)}{新横浜}{3};
\停車{新横浜}{1}{};
\停車{新横浜}{2}{};
\停車{新横浜}{3}{};
\駅{(0,-2.25)}{小田原}{3};
\停車{小田原}{1}{-};
\停車{小田原}{2}{@};
\停車{小田原}{3}{};
\駅{(0,-3)}{熱海}{3};
\停車{熱海}{1}{-};
\停車{熱海}{2}{@};
\停車{熱海}{3}{};
\駅{(0,-3.75)}{三島}{3};
\停車{三島}{1}{-};
\停車{三島}{2}{@};
\停車{三島}{3}{};
\駅{(0,-4.5)}{新富士}{3};
\停車{新富士}{1}{-};
\停車{新富士}{2}{-};
\停車{新富士}{3}{};
\駅{(0,-5.25)}{静岡}{3};
\停車{静岡}{1}{-};
\停車{静岡}{2}{};
\停車{静岡}{3}{};
\駅{(0,-6)}{掛川}{3};
\停車{掛川}{1}{-};
\停車{掛川}{2}{-};
\停車{掛川}{3}{};
\駅{(0,-6.75)}{浜松}{3};
\停車{浜松}{1}{-};
\停車{浜松}{2}{};
\停車{浜松}{3}{};
\駅{(0,-7.5)}{豊橋}{3};
\停車{豊橋}{1}{-};
\停車{豊橋}{2}{@};
\停車{豊橋}{3}{};
\駅{(0,-8.25)}{三河安城}{3};
\停車{三河安城}{1}{-};
\停車{三河安城}{2}{-};
\停車{三河安城}{3}{};
\駅{(0,-9)}{名古屋}{3};
\停車{名古屋}{1}{};
\停車{名古屋}{2}{};
\停車{名古屋}{3}{};
\駅{(0,-9.75)}{岐阜羽島}{3};
\停車{岐阜羽島}{1}{-};
\停車{岐阜羽島}{2}{};
\停車{岐阜羽島}{3}{};
\駅{(0,-10.5)}{米原}{3};
\停車{米原}{1}{-};
\停車{米原}{2}{};
\停車{米原}{3}{};
\駅{(0,-11.25)}{京都}{3};
\停車{京都}{1}{};
\停車{京都}{2}{};
\停車{京都}{3}{};
\駅{(0,-12)}{新大阪}{3};
\停車{新大阪}{1}{};
\停車{新大阪}{2}{};
\停車{新大阪}{3}{};
\駅{(0,-12.75)}{新神戸}{4};
\停車{新神戸}{1}{};
\停車{新神戸}{2}{};
\停車{新神戸}{3}{};
\駅{(0,-13.5)}{西明石}{4};
\停車{西明石}{1}{@};
\停車{西明石}{2}{@};
\停車{西明石}{3}{};
\駅{(0,-14.25)}{姫路}{4};
\停車{姫路}{1}{};
\停車{姫路}{2}{@};
\停車{姫路}{3}{};
\駅{(0,-15)}{相生}{4};
\停車{相生}{1}{-};
\停車{相生}{2}{@};
\停車{相生}{3}{};
\駅{(0,-15.75)}{岡山}{4};
\停車{岡山}{1}{};
\停車{岡山}{2}{};
\停車{岡山}{3}{};
\駅{(0,-16.5)}{新倉敷}{4};
\停車{新倉敷}{1}{-};
\停車{新倉敷}{2}{-};
\停車{新倉敷}{3}{};
\駅{(0,-17.25)}{福山}{4};
\停車{福山}{1}{};
\停車{福山}{2}{};
\停車{福山}{3}{};
\駅{(0,-18)}{新尾道}{4};
\停車{新尾道}{1}{-};
\停車{新尾道}{2}{-};
\停車{新尾道}{3}{};
\駅{(0,-18.75)}{三原}{4};
\停車{三原}{1}{-};
\停車{三原}{2}{-};
\停車{三原}{3}{};
\駅{(0,-19.5)}{東広島}{4};
\停車{東広島}{1}{-};
\停車{東広島}{2}{-};
\停車{東広島}{3}{};
\駅{(0,-20.25)}{広島}{4};
\停車{広島}{1}{};
\停車{広島}{2}{};
\停車{広島}{3}{};
\駅{(0,-21)}{新岩国}{4};
\停車{新岩国}{1}{-};
\停車{新岩国}{2}{-};
\停車{新岩国}{3}{};
\駅{(0,-21.75)}{徳山}{4};
\停車{徳山}{1}{@};
\停車{徳山}{2}{@};
\停車{徳山}{3}{};
\駅{(0,-22.5)}{新山口}{4};
\停車{新山口}{1}{};
\停車{新山口}{2}{};
\停車{新山口}{3}{};
\駅{(0,-23.25)}{厚狭}{4};
\停車{厚狭}{1}{-};
\停車{厚狭}{2}{-};
\停車{厚狭}{3}{};
\駅{(0,-24)}{新下関}{4};
\停車{新下関}{1}{-};
\停車{新下関}{2}{@};
\停車{新下関}{3}{};
\駅{(0,-24.75)}{小倉}{4};
\停車{小倉}{1}{};
\停車{小倉}{2}{};
\停車{小倉}{3}{};
\単発駅{(0,-25.5)}{博多}{\会社色{4}{博}\会社色{6}{多}};
\停車{博多}{1}{};
\停車{博多}{2}{};
\停車{博多}{3}{};
\駅{(0,-26.25)}{新鳥栖}{6};
\停車{新鳥栖}{1}{-};
\停車{新鳥栖}{2}{};
\停車{新鳥栖}{3}{};
\駅{(0,-27)}{久留米}{6};
\停車{久留米}{1}{-};
\停車{久留米}{2}{};
\停車{久留米}{3}{};
\駅{(0,-27.75)}{筑後船小屋}{6};
\停車{筑後船小屋}{1}{-};
\停車{筑後船小屋}{2}{@};
\停車{筑後船小屋}{3}{};
\駅{(0,-28.5)}{新大牟田}{6};
\停車{新大牟田}{1}{-};
\停車{新大牟田}{2}{@};
\停車{新大牟田}{3}{};
\駅{(0,-29.25)}{新玉名}{6};
\停車{新玉名}{1}{-};
\停車{新玉名}{2}{@};
\停車{新玉名}{3}{};
\駅{(0,-30)}{熊本}{6};
\停車{熊本}{1}{};
\停車{熊本}{2}{};
\停車{熊本}{3}{};
\駅{(0,-30.75)}{新八代}{6};
\停車{新八代}{1}{-};
\停車{新八代}{2}{};
\停車{新八代}{3}{@};
\駅{(0,-31.5)}{新水俣}{6};
\停車{新水俣}{1}{-};
\停車{新水俣}{2}{};
\停車{新水俣}{3}{@};
\駅{(0,-32.25)}{出水}{6};
\停車{出水}{1}{-};
\停車{出水}{2}{};
\停車{出水}{3}{@};
\駅{(0,-33)}{川内}{6};
\停車{川内}{1}{-};
\停車{川内}{2}{};
\停車{川内}{3}{@};
\駅{(0,-33.75)}{鹿児島中央}{6};
\停車{鹿児島中央}{1}{};
\停車{鹿児島中央}{2}{};
\停車{鹿児島中央}{3}{@};
%\駅{(0,-)}{ほげ}{4};
% \停車{ほげ}{1}{};
% \停車{ほげ}{2}{};
% \停車{ほげ}{3}{};
\end{tikzpicture}
\end{center}
\end{document}
%ストッパー
