モノクロマインドマップ

鉄TeX機能紹介/TikZサンプル/モノクロマインドマップ.tex鉄TeX機能紹介 / TikZhybrid

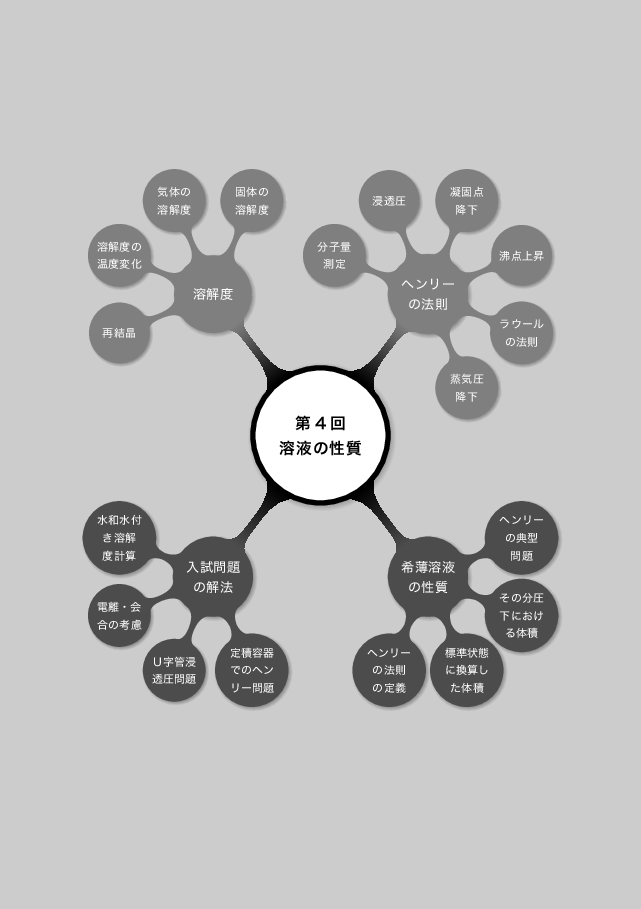

レンダリング結果

1ページ / 同名PDFあり
モノクロマインドマップ preview
PDFを開く
TeXソース
TeXソース
入力コード
\documentclass[a5j,7.5pt,twoside]{tetsujsarticle}
\usepackage{tetsuchem}
\usepackage{高3化学}
\begin{document}

\pagecolor{black!20}


\tikzset{mind map/.style={    mindmap,
    every node/.style={concept, circular drop shadow,execute at begin node=},
    タイトル/.append style={
      concept color=black,
      fill=white, line width=1ex,
      text=black, font=\Large\bgtfamily},
    text=white,
    左下/.style={concept color=black!70!white},
    右下/.style={concept color=black!70!white},
    右上/.style={concept color=black!50!white},
    左上/.style={concept color=black!50!white},
    grow cyclic,
    level 1/.append style={level distance=4.5cm,sibling angle=90,font=\large\gtfamily},
    level 2/.append style={level distance=3cm,sibling angle=45,font=\gtfamily}}}


\cdef{回番号}{4}

%\def\章扉#1#2#3#4#5#6#7#8{%
%~\br{-3}\vfil
%\noindent\hfil
%      \edef\result{node [yshift=-1cm] {#1}}
%      \foreach \i in {#2} {
%        \xdef\result{\result child{node {\i}} }
%      }
%      \typeout{\result}
%\def\左下{child [左下]}
%\begin{tikzpicture}[mind map]
%\node [タイトル]  {第\tetsuarabic{回番号}回\\\高3化学授業内容{\arabic{回番号}}}
%    \expandafter c\expandafter h\expandafter i\expandafter l\expandafter d\expandafter [\expandafter 左\expandafter 下\expandafter ]\expandafter{
%      \result
%    }
%    child [右下] {
%     node [yshift=-1cm] {#3}
%      \foreach \i in {#4} {
%        child { node {\i} }
%      }
%    }
%    child [右上] {
%     node [yshift=1cm] {#5}
%      \foreach \i in {#6} {
%        child { node {\i} }
%      }
%    }
%    child [左上] {
%     node [yshift=1cm] {#7}
%      \foreach \i in {#8} {
%        child { node {\i} }
%      }
%    };
%\end{tikzpicture}
%}
%
%\章扉{入試問題の解法}{水和水付き溶解度計算,電離・会合の考慮,U字管浸透圧問題,定積容器でのヘンリー問題}{希薄溶液の性質}{ヘンリーの法則の定義,標準状態に換算した体積,その分圧下における体積,ヘンリーの典型問題}{}{}{}{}
%
%
%\end{document}


~\br{-3}\vfil
\noindent\hfil
\begin{tikzpicture}[mind map]
\node [タイトル]  {第\tetsuarabic{回番号}回\\\高3化学授業内容{\arabic{回番号}}}
    child [左下] {
     node [yshift=-1cm] {入試問題の解法}
      child { node {水和水付き溶解度計算} }
      child { node {電離・会合の考慮} }
      child { node {U字管浸透圧問題} }
      child { node {定積容器でのヘンリー問題} }
    }
    child [右下] {
     node [yshift=-1cm] {希薄溶液の性質}
      child { node {ヘンリーの法則の定義} }
      child { node {標準状態に換算した体積} }
      child { node {その分圧下における体積} }
      child { node {ヘンリーの典型問題} }
    }
    child [右上] {
     node [yshift=1cm] {ヘンリーの法則}
      child { node {蒸気圧降下} }
      child { node {ラウールの法則} }
      child { node {沸点上昇} }
      child { node {凝固点降下} }
      child { node {浸透圧} }
      child { node {分子量測定} }
    }
    child [左上] {
     node [yshift=1cm] {溶解度}
      child { node {固体の溶解度} }
      child { node {気体の溶解度} }
      child { node {溶解度の温度変化} }
      child { node {再結晶} }
    };
\end{tikzpicture}

\end{document}
